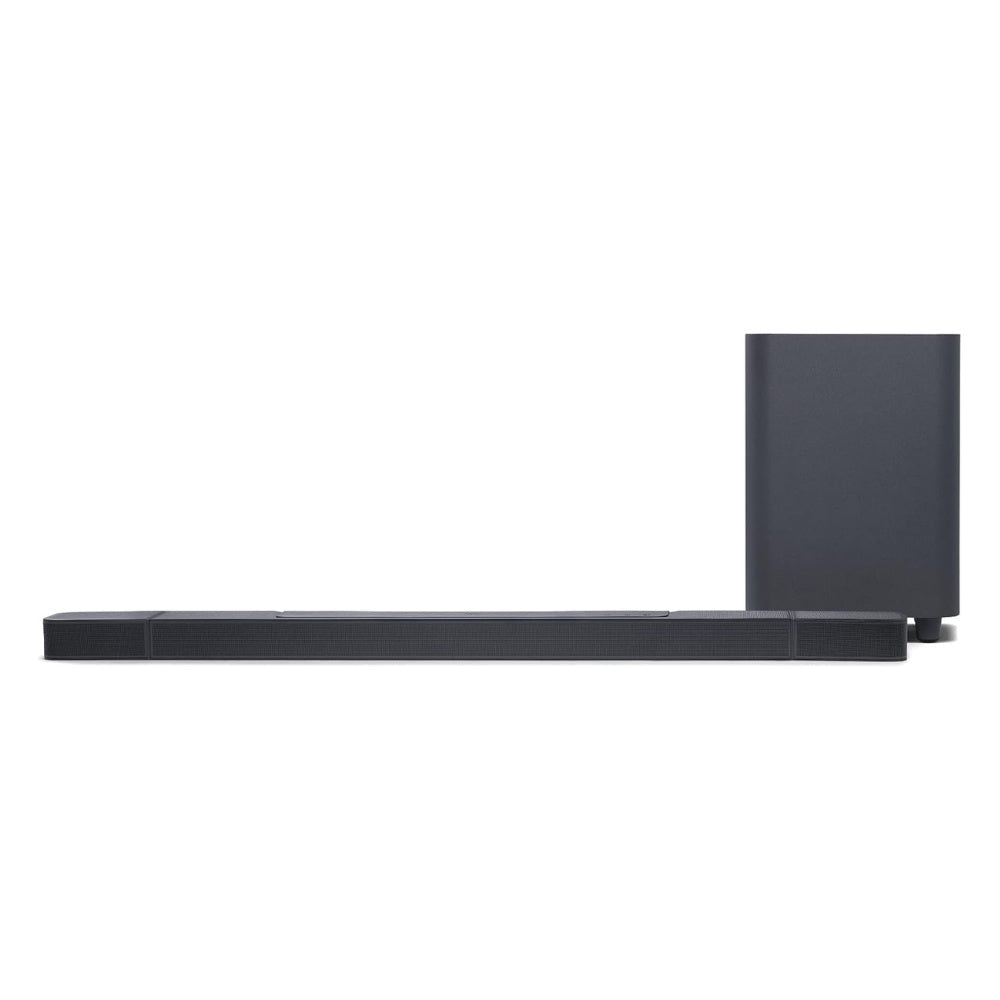

JBL Bar 1000 7.1.4 Channel Soundbar with Detachable Speakers

Features

• 7.1.4 Channel Soundbar with Detachable Speakers
• Dolby Atmos Surround, DTS:X + MultiBeam
• PureVoice Tech, 880W Output
• Subwoofer output power 300W
• Built-In WiFi, Voice Assistant, 3D Sound
• HDMI eARC with 4K Dolby Vision Passthrough

JBL Bar 1000 7.1.4 Channel Soundbar with Detachable Speakers

True Dolby Atmos®, DTS:X, and MultiBeam™ Surround Sound

Immerse yourself in theater-quality 3D sound. With two up-firing drivers in the main bar and two more in the detachable speakers, the JBL Bar 1000 delivers true Dolby Atmos® and DTS:X together with MultiBeam™ for an enhanced 3D surround sound experience

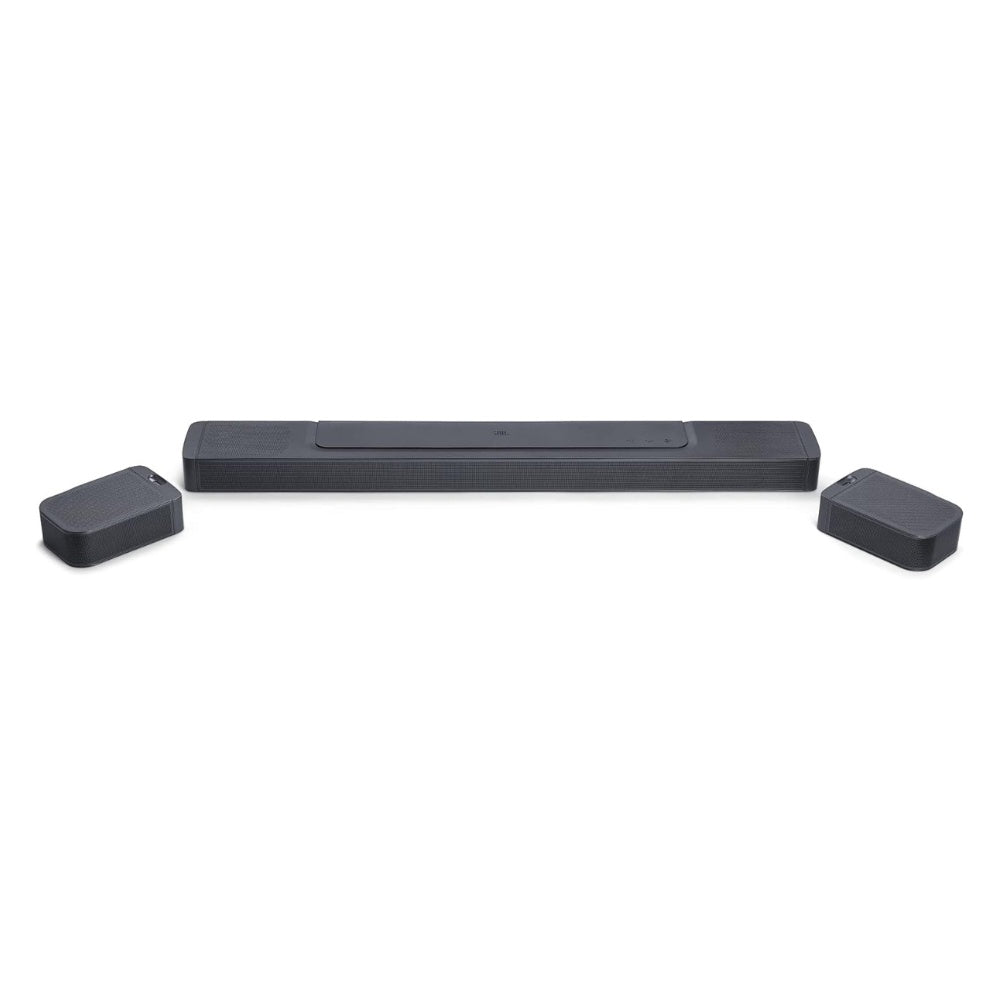

Real surround sound with detachable surround speakers

Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™

Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features



Specs

General Specifications

Model BAR 1000 Sound system 7.1.4 channel Power supply 100 - 240V AC, ~ 50/60Hz Networked standby power < 2.0W Operating temperature 0°C - 45°C

Audio Specifications

Total speaker power output (Max @THD 1%) 880W Soundbar output power (Max @THD 1%) 440W Surround speaker output power (Max @THD 1%) 2x 70W Subwoofer output power (Max. @THD 1%) 300 W Soundbar transducer 5x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers Surround speaker transducer 0.75" (20mm) tweeters, 2.75" (70mm) up-firing full-range drivers Subwoofer transducer 10” (260mm) Frequency response 33Hz - 20kHz (-6dB) Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D) 1194 x 56 x 125mm / 47" x 2.2" x 4.9" Main soundbar dimensions (W x H x D) 884 x 56 x 125 mm / 34.8" x 2.2" x 4.9" Detachable surround speaker dimensions (each) (W x H x D) 155 x 56 x 125 mm / 6.1" x 2.2" x 4.9" Subwoofer dimensions (W x H x D) 305 x 440.4 x 305 mm / 12" x 17.3" x 12" Soundbar weight 3.7 kg / 8.2 lbs Detachable surround speaker weight (each) 1.4kg / 3.1 lbs Subwoofer weight 10 kg / 22 lbs Packaging dimensions (W x H x D) 1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7" Packaging Weight 19.4 kg / 42.7 lbs

Control and Connection Specifications

USB port Type A USB rating 5V DC, 0.5A Supporting file format MP3 MP3 codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 MP3 sampling rate 16 - 48 kHz MP3 bitrate 80 - 320 kpbs Bluetooth version 5.3 Bluetooth profile A2DP 1.2, AVRCP 1.5 Bluetooth transmitter frequency range 2400MHz – 2483.5MHz Bluetooth transmitter power <15dBm (EIRP) Wi-Fi network IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) 2.4G Wi-Fi transmitter frequency range 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels) 2.4G Wi-Fi transmitter power < 20dBm (EIRP) 5G Wi-Fi transmitter frequency range 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz 5G Wi-Fi transmitter power 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP) 2.4G wireless frequency range 2406 - 2474MHz 2.4G wireless power ＜10dBm (EIRP）

Battery

Lithium battery 3.635V, 3283mAh

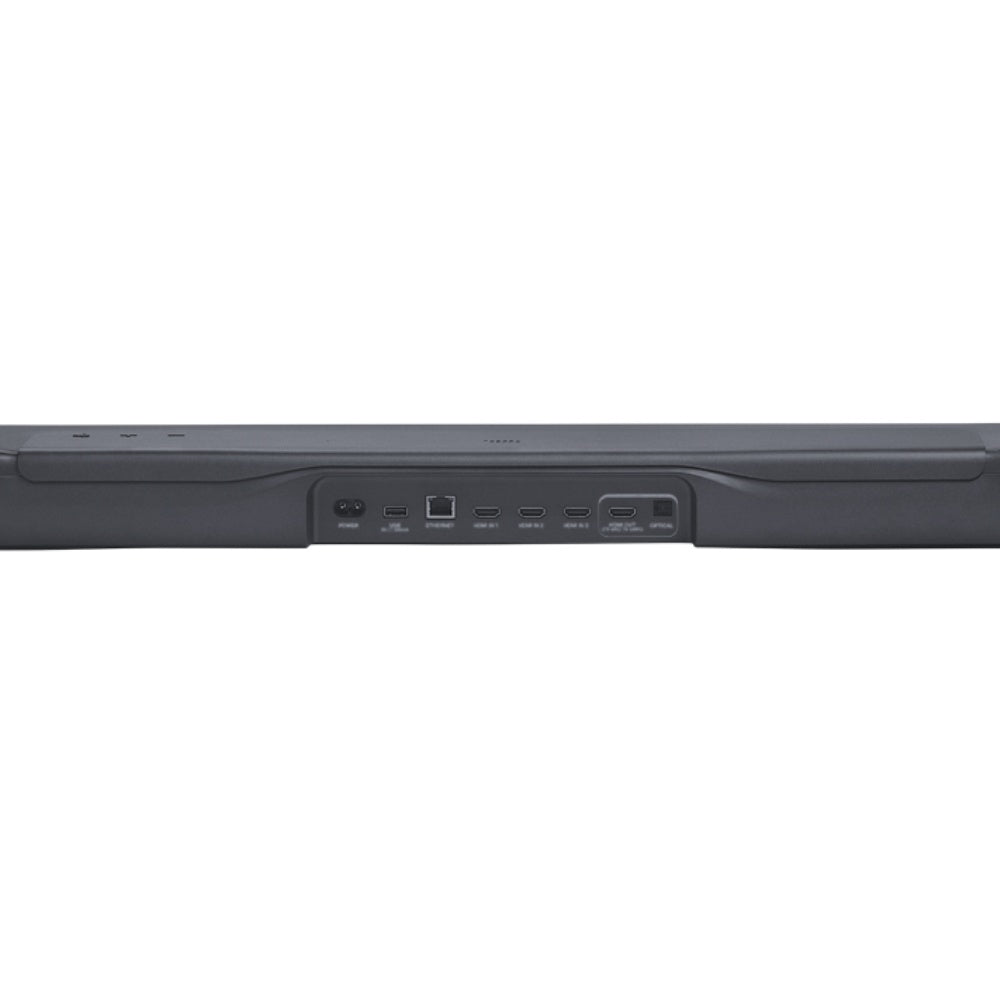

Video Specifications

HDMI video input 3 HDMI video output (with Enhanced Audio Return Channel, eARC) 1 HDMI HDCP version 2.3 HDR pass through HDR10, Dolby Vision

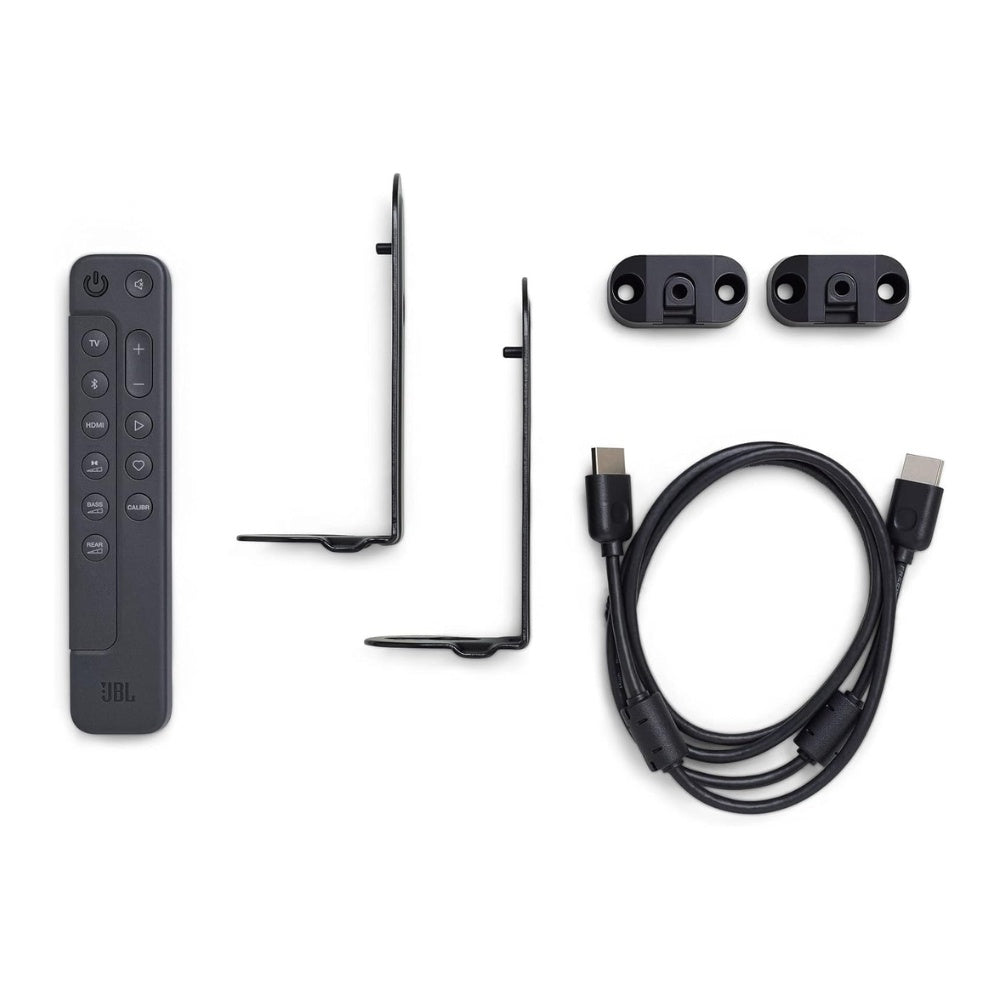

What's in The Box?

1x Main soundbar 2x Detachable wireless surround speakers 1x Wireless subwoofer Remote control with 2 x batteries Power cords (up to 8pcs depending on region SKUs) 1 x HDMI cable 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws 4 x Side caps Quick start guide Safety instruction and Warranty card Wall mount template
