JBL Bar 2.1 Deep Bass MK2

JBL Bar 2.1 Deep Bass MK2

Bring the power

Fill your whole room with sound. An impressive 300W of total system power puts you in control. Your movies and music have never sounded so good

Surround yourself with sound

JBL Surround Sound instantly brings movies, sports and music to life. Upgrade to an immersive sound experience for your TV without any extra wires or speakers


Specs

General Specifications

Power supply 100 - 240V AC, ~ 50/60Hz Operating temperature 0°C - 45°C

Audio Specifications

Total speaker power output (Max. @THD 1%) 300W Output power (Max. @THD 1%) 2 x 50W (Soundbar), 200W (Subwoofer) Transducer 4 x race-track driv-ers + 2 x 1” tweeter (Soundbar), 6.5” (Subwoofer) Soundbar and Subwoofer standby power <0.5W Frequency response 40Hz - 20KHz Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Dimensions (W x H x D) 965 x 56 x 85 (mm) / 38” x 2.2” x 3.4” (Soundbar) Dimensions (W x H x D) 240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer) Weight 2.14 kg (Soundbar) Weight 5.61 kg (Subwoofer) Packaging dimensions (W x H x D) 1045 x 310 x 405mm Packaging weight (Gross weight) 10.32kg

Control and Connection Specifications

USB port Type A USB rating 5V DC/ 0.5A Supporting file format mp3, wav MP3 Codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 MP3 sampling rate 16KHz - 48 KHz MP3 bitrate 80kbps - 320kbps WAV sample rate 16KHz - 48 KHz WAV bitrate Up to 3000kbps Bluetooth version 4.2 Bluetooth profile A2DP V1.3, AVRCP V1.5 Bluetooth frequency range 2402MHz-2480MHz Bluetooth Max. transmitting power <10dBm  (EIRP) Modulation Type GFSK, π/4 DQPSK, 8DPSK 5G Wireless frequency range 5736.35 - 5820.35MHz 5G Max. transmitting power <9dBm (EIRP) Modulation Type π/4 DQPSK

Video Specifications

HDMI Video input 1 HDMI Video output (With Audio return channel) 1 HDMI version 1.4

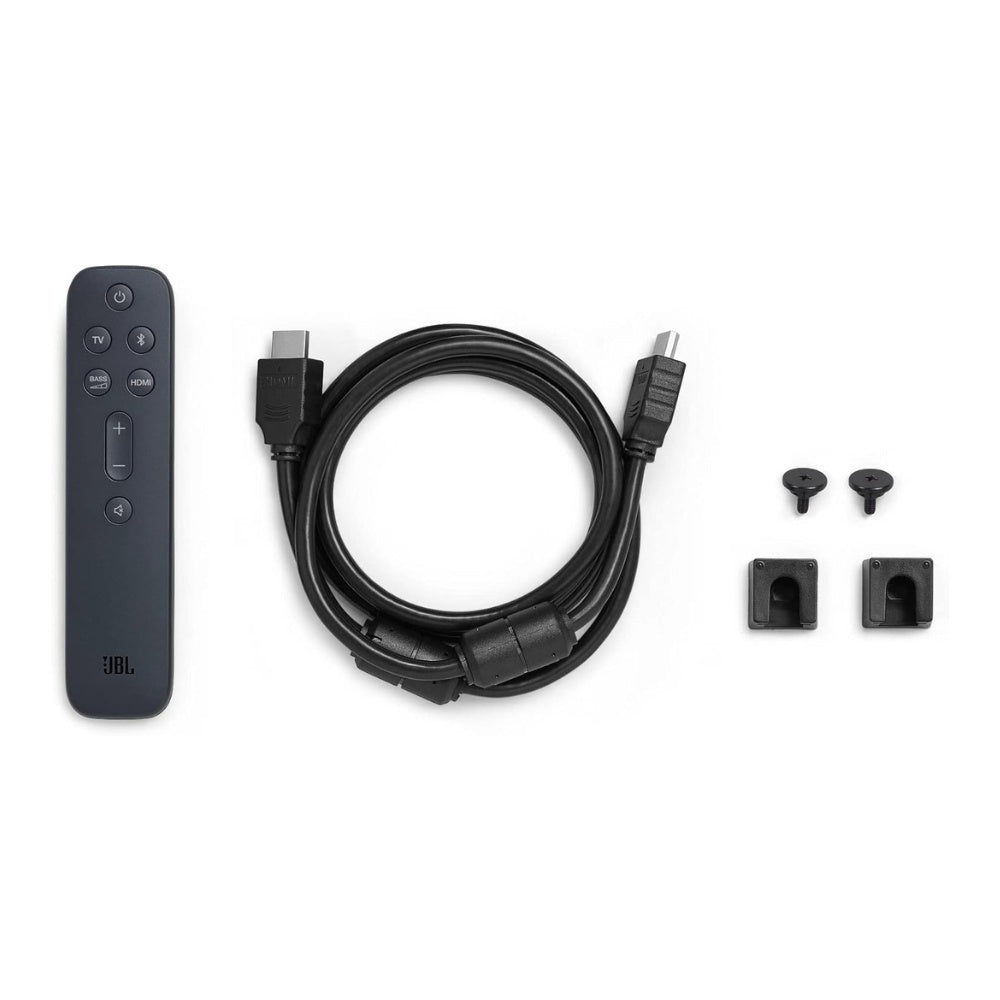

What's in the Box?

• Soundbar
• Wireless subwoofer
• Remote control with batteries
• Power cords (up to 8pcs depending on region SKUs)
• HDMI cable
• Wall-mount bracket kit with screws
• Quick start guide
• Safety sheet
