Marsriva KP6 Mini DC UPS

Marsriva KP6 Smart Mini DC UPS 10000mAh

The Marsriva KP6 Smart Mini DC UPS is designed to keep essential low-power devices running during electricity cuts, power shifts, or unstable power conditions. With a 10000mAh lithium-ion battery, 36Wh capacity, 18W maximum output, 0ms AC-to-DC transfer, Passive PoE, 3 DC outputs, USB output, flame-retardant housing, and wall-mount support, it is a practical backup power solution for Wi-Fi routers, ONU devices, CCTV equipment, modems, and other compatible DC-powered devices.

Key Features

• Keeps Wi-Fi Powered During Outages
  Helps keep your router or compatible network device running when the electricity cuts.
• 10000mAh Battery Capacity
  Built-in lithium-ion battery provides backup power for supported devices.
• 36Wh High-Capacity Battery
  Designed for extended runtime depending on the connected device power consumption.
• 18W Maximum Output
  Suitable for a wide range of low-power DC devices within the supported output limit.
• 0ms Seamless Switching
  Automatically switches from AC power to battery mode with no transfer delay, helping devices stay powered without interruption.
• Multi-Device Power Output
  Includes 1 Passive PoE port, 3 DC outputs, and 1 USB output to power multiple compatible devices.
• Passive PoE Support
  Provides 24V / 0.75A PoE output for compatible network equipment.
• Multiple DC Voltage Outputs
  Supports 12V, 9V, and 5V DC output options for different device requirements.
• USB 5V Output
  USB port supports 5V / 2.1A output for compatible USB-powered devices.
• V-0 Flame-Retardant Housing
  ABS + PC casing helps improve safety and durability.
• Air-Cooling System
  Supports stable long-term operation by helping with heat dissipation.

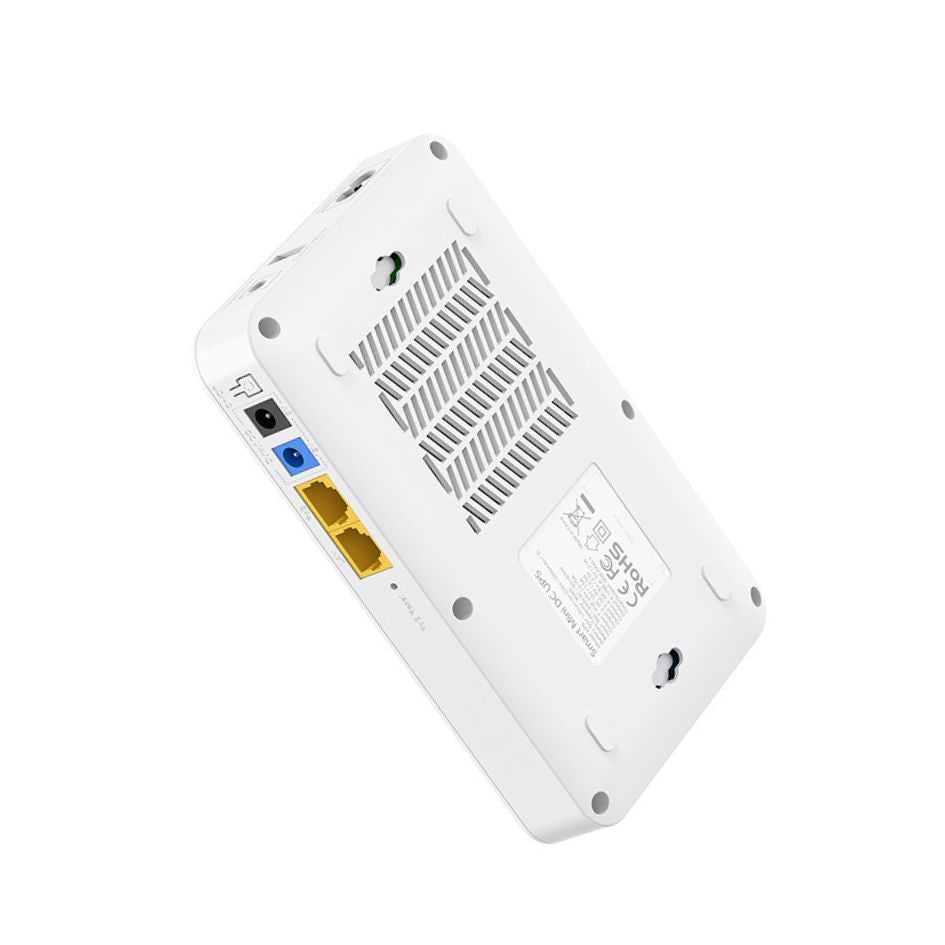

• Wall-Mount Design
  Built-in wall-mount slots allow simple installation near routers, modems, or network equipment.

Technical Specifications

• Product Type: Smart Mini DC UPS
• Brand: Marsriva
• Series: KP6 Series
• Battery Capacity: 36Wh
• Battery Type: Lithium-ion battery
• Battery Rating: 3.6V / 10000mAh
• Battery Cell Structure: 5000mAh × 2
• Material: ABS + PC
• Input: 100–240VAC, 50–60Hz
• Total Output: 18W max
• PoE Output: 24V / 0.75A
• DC 1 Output: 12V / 1.5A
• DC 2 Output: 9V / 2.0A
• DC 3 Output: 5V / 2.1A
• USB Output: 5V / 2.1A
• Transfer Time: 0ms AC-to-DC switching
• Housing Safety: V-0 flame-retardant casing
• Cooling: Air-cooling system
• Installation: Wall-mount support
• Weight: 397g

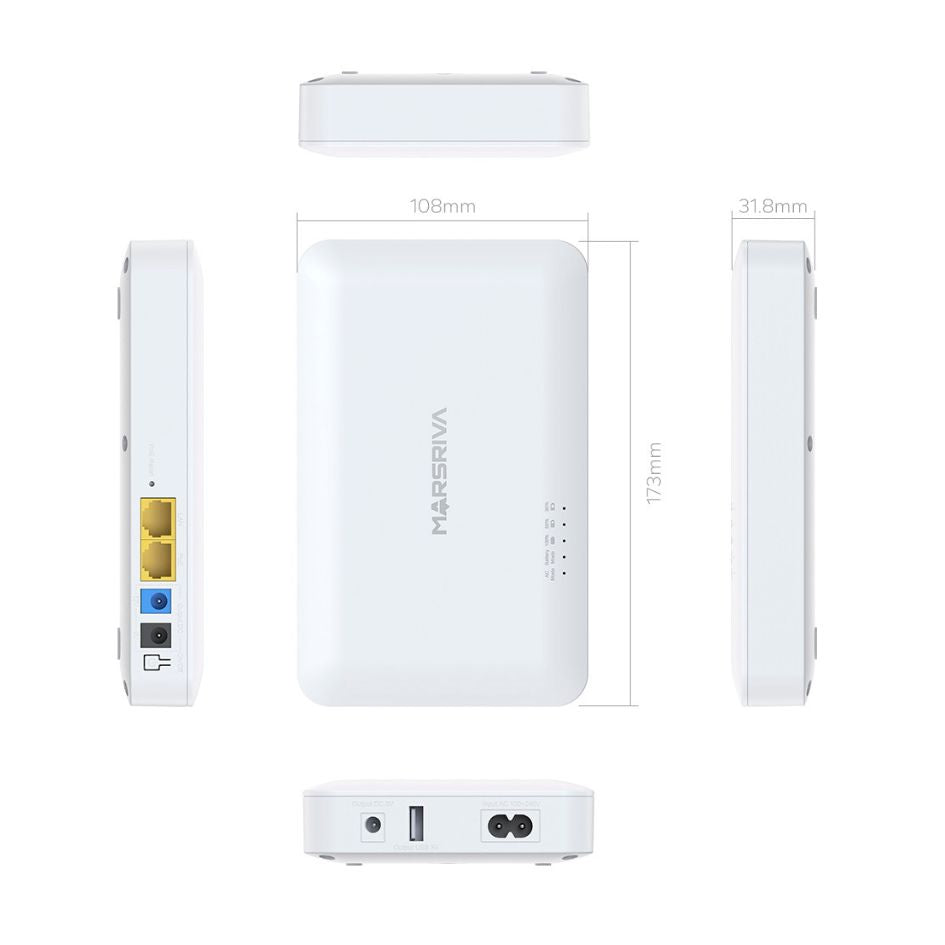

• Unit Dimensions: 173 × 108 × 31.8mm

Output Ports

• 1 × Passive PoE output
• 3 × DC outputs
• 1 × USB output

Battery & Runtime

• Battery Capacity: 10000mAh / 36Wh
• Maximum Output: 18W
• Battery Type: Lithium-ion

Actual backup time depends on the connected device power consumption, number of connected devices, battery condition, and output voltage used.

Operating Conditions

• UPS Mode Operating Temperature: 0°C to 40°C
• Battery Mode Operating Temperature: -15°C to 50°C
• Operating Humidity: Less than 75% RH

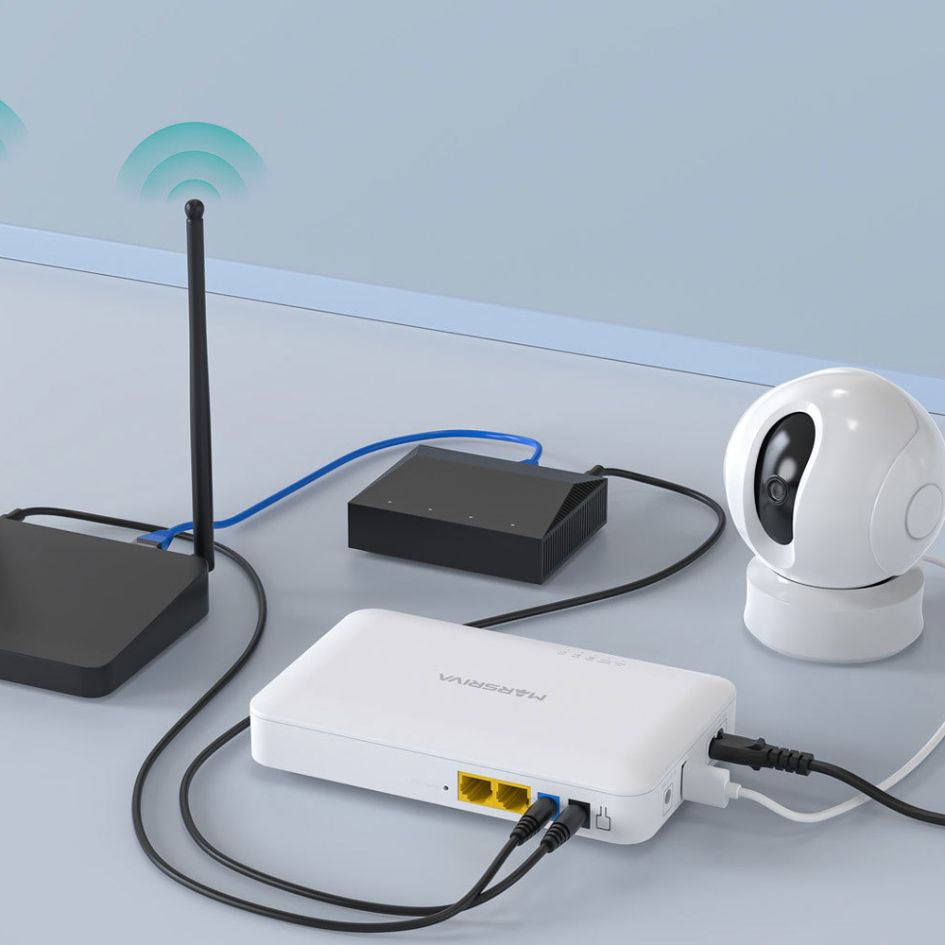

Best Use Cases

• Wi-Fi routers
• Fiber ONU devices
• Modems
• CCTV cameras
• Small network devices
• Low-power DC devices
• Home internet backup
• Office network backup
• Areas with frequent power cuts
